50W 100W 12V Flexible Solar Panel 150W 200W Solar Panel Caravan Van Upgraded 10A /20A Solar Charge Controller for Car RV Marine

2 * 50W (100W) -12V semi-flexible flexible single solar panel caravan van for Car RV Marine Boat Trailer

Features:

[Multiple Compatibility] Perfect solar power kit for a variety of off-grid applications like shed, cabin, gate opener, etc where 12V battery is used, as well as to charge and maintain AGM, Flooded, GEL, Deep Cycle and Seal Lead Acid, etc batteries in the car, Rv, boat, marine, trailer, camper, pump, etc.

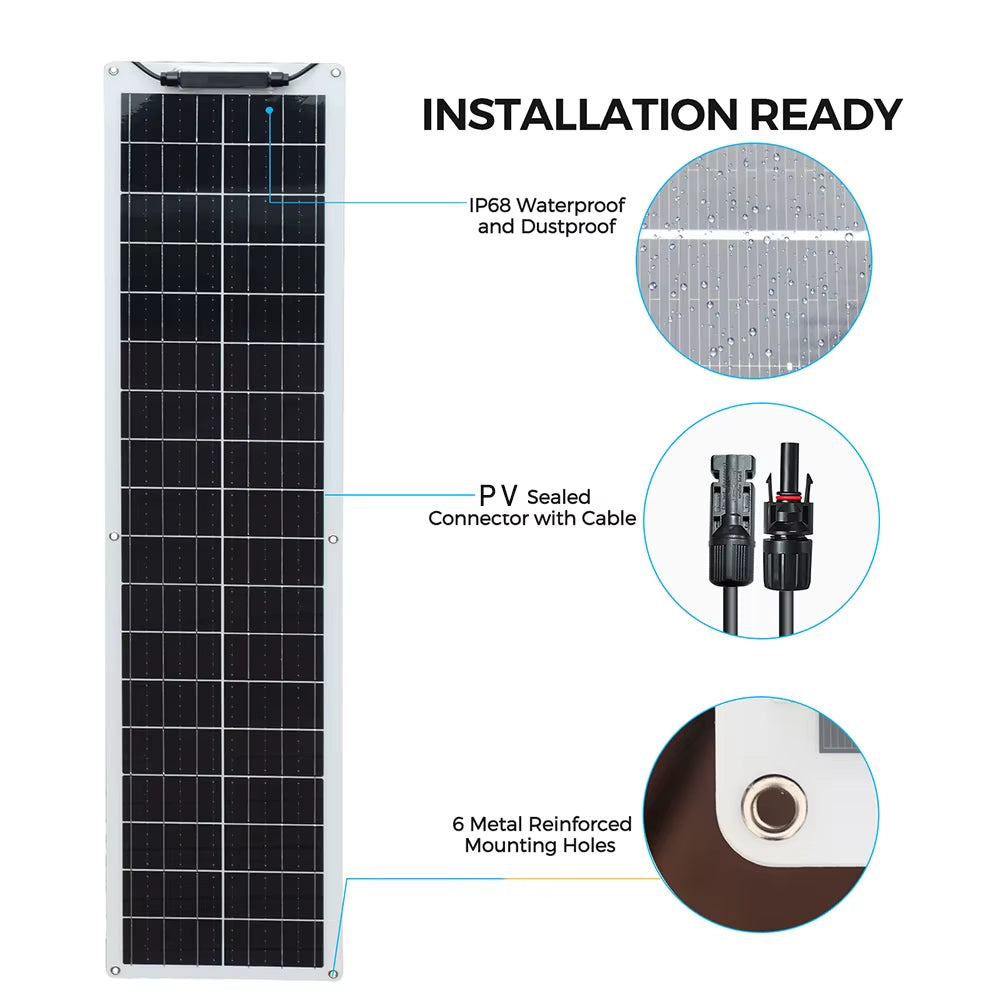

[Light weight] Made of high efficient solar cells,withstand extreme weather conditions like UV, anti-rusting, IP65 waterproof.
[Intelligent Charging] Optimized 3-stages charging algorithm allows to charge the battery more efficiently, and prevent the battery from overcharge, over-discharge, over-voltage, short circuit, etc, fully protect battery and extend the lifetime.
[Visual Monitor] Visual bright LED indicators help to monitor battery conditions and better understand the status of solar panel and load. Exclusively equipped three working modes for load, allowing to set up the load to work under dusk to dawn automatically plus working hours according to personal requirement, very practical and useful.

16.5V 50W solar panel Specification

Maximum power(Pmax) 50W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 16.5V

Short circuit current(Isc) 3.03 A

Maximum power voltage(Vmp) 19.8V

Maximum power current(Imp) 3.33A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 32pcs

Weight 1000g

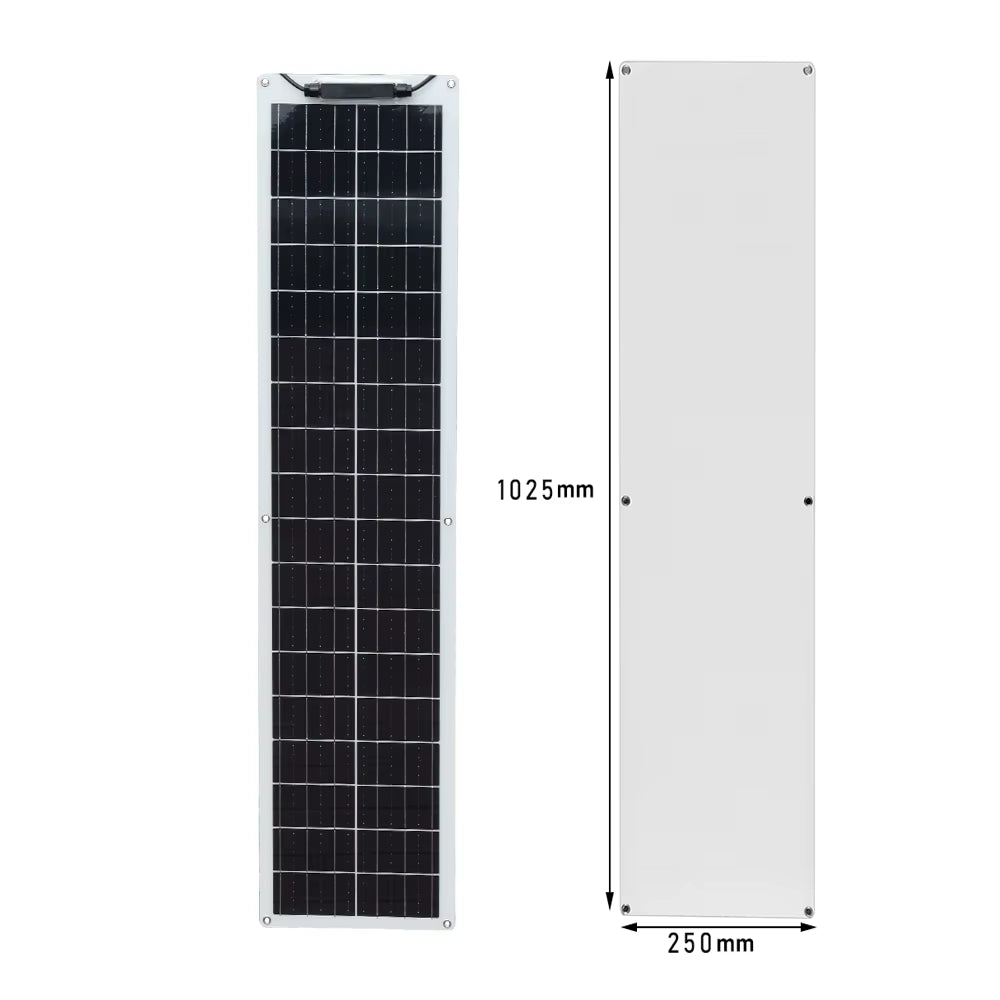

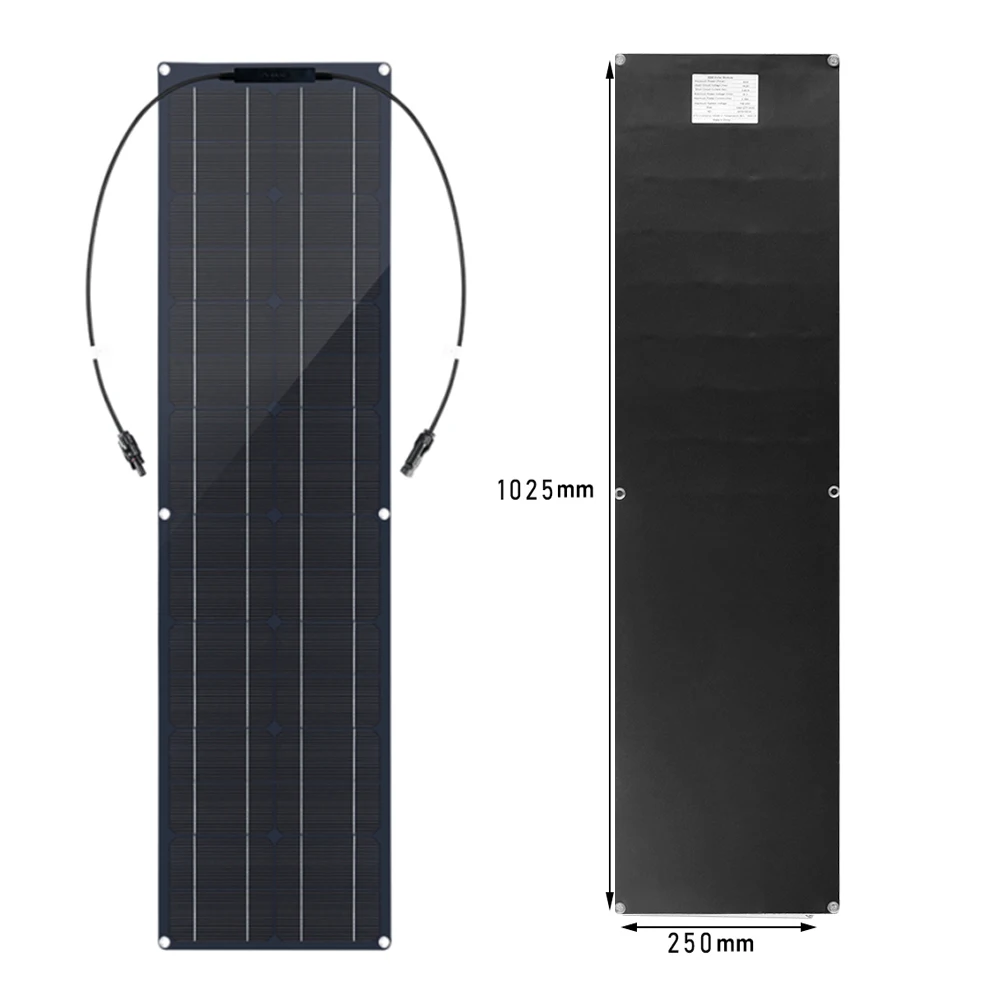

Size 1025*250*3MM

Color White/Black

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5


1 Etage: Haustier

2 Etage: Eva Film

3 Stock: Solarzelle der hohen Leistungs fähigkeit

4 Stock: Eva Film

5 Etage: Tpt Backs heet

Wasserdichtes Niveau: IP67 (Anschluss kasten)

(Die obigen Daten basieren auf der Labor-Standard-Testumgebung)

Für Feld verbindungen, verwenden minimun no.14awg Kupferdrähte isoliert für ein Minimum 90 ℃

Standard test bedingungen:

Am = 1,5 Bestrahlung stärke = 1000w/m2 Temp.= 25 ℃

(Die Größe wird manuell gemessen und es gibt einen bestimmten Fehler. Kunden, die genaue Größe bitte nicht kaufen wollen, danke)

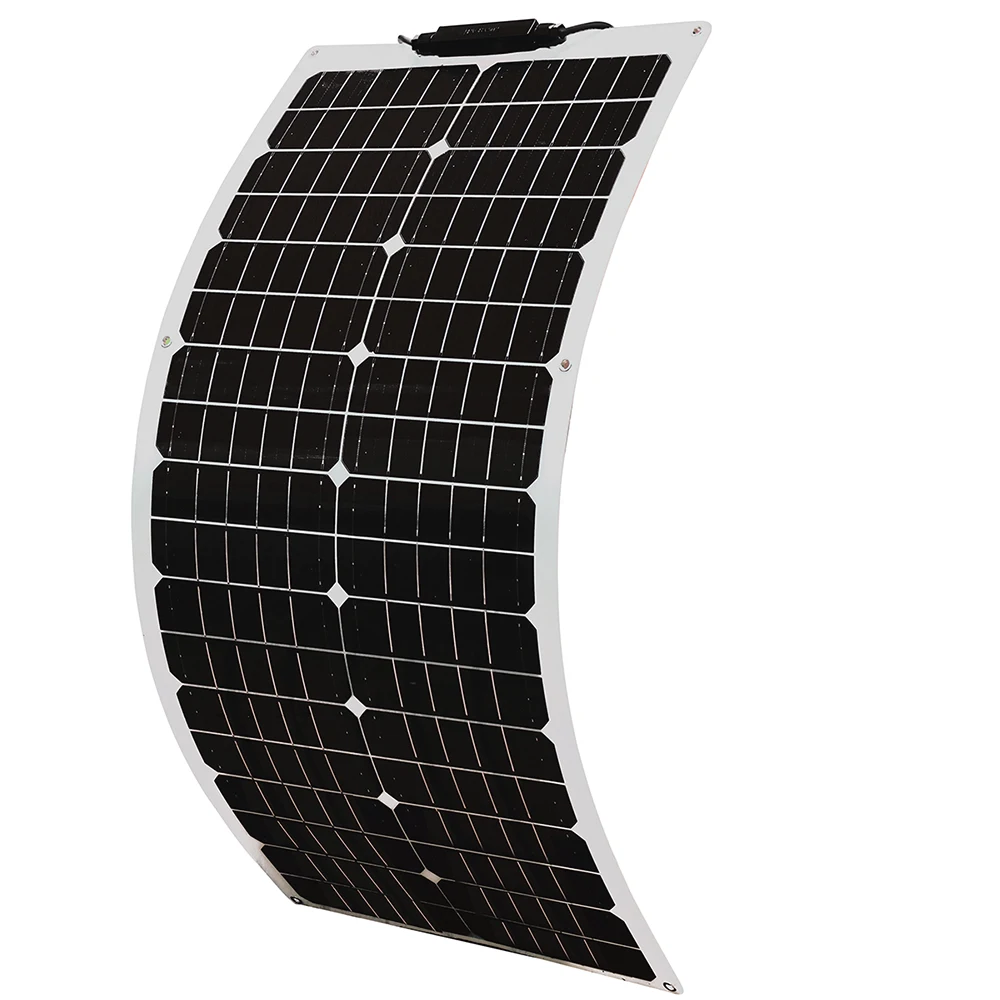

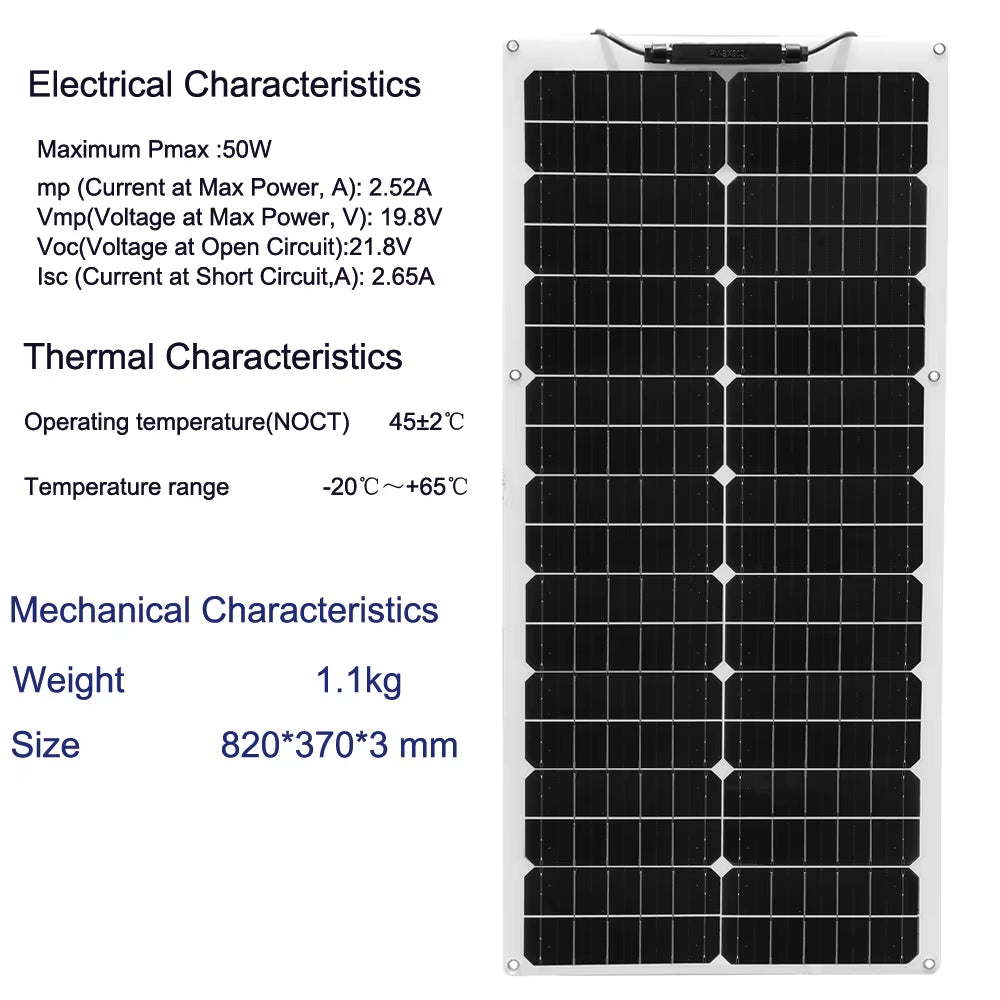

19.8V 50W PET solar panel Specification

Cell material: Monocrystalline silicon

Pmax (Power at Maximum under STC) :50W

Imp (Current at Max Power, A): 2.52A

Vmp(Voltage at Max Power, V): 19.8V

Voc(Voltage at Open Circuit):21.8V

Isc (Current at Short Circuit,A): 2.65A

Solar Cell Efficiency: 24%

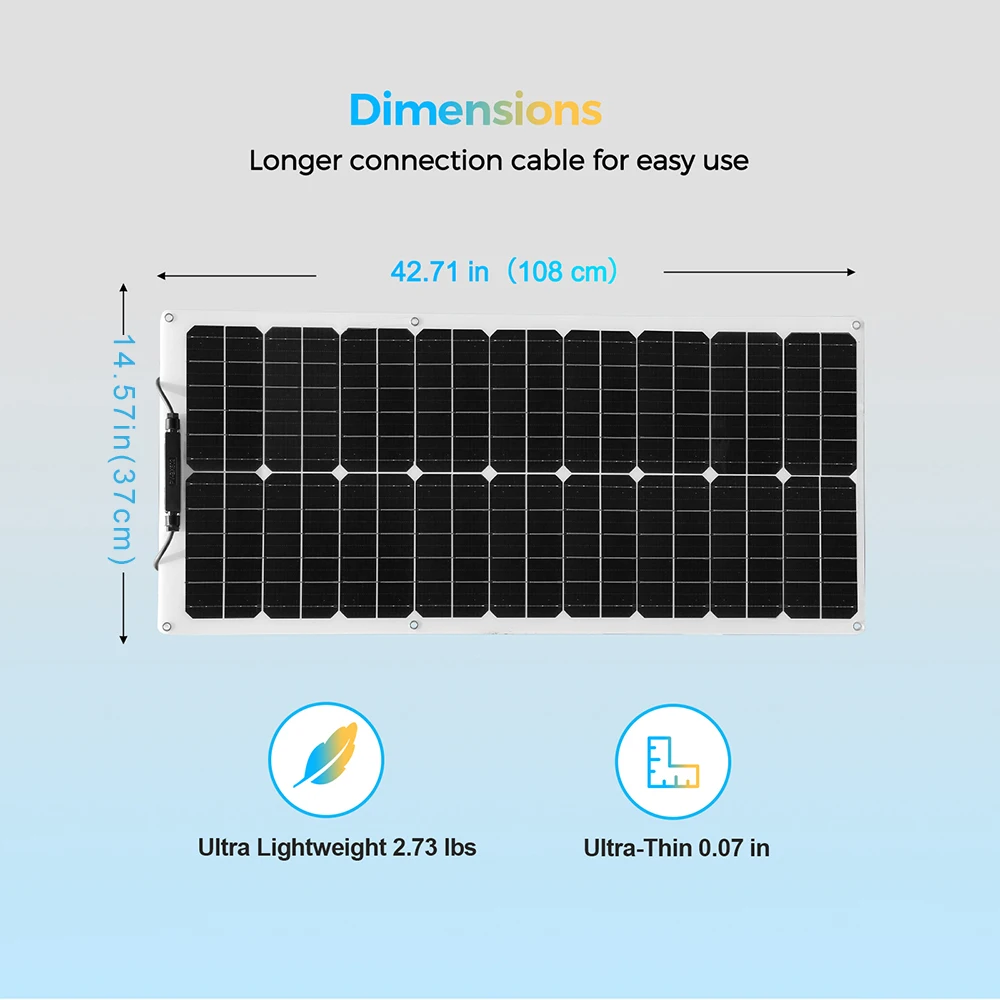

Size of module:820*370*3mm

Net Weight: 2.56Ib (1.1kg)

Length of Cables: 19.7(inches)

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error，thank you）

Solar panel kit

1、 2*50w solar panels (1025*250MM)

2、 1 set 3m cable with PV connector

3、 1 set 3m cable with Alligator clip

4、 1*10A Controller

5、 1 set 2 in 1 adapter

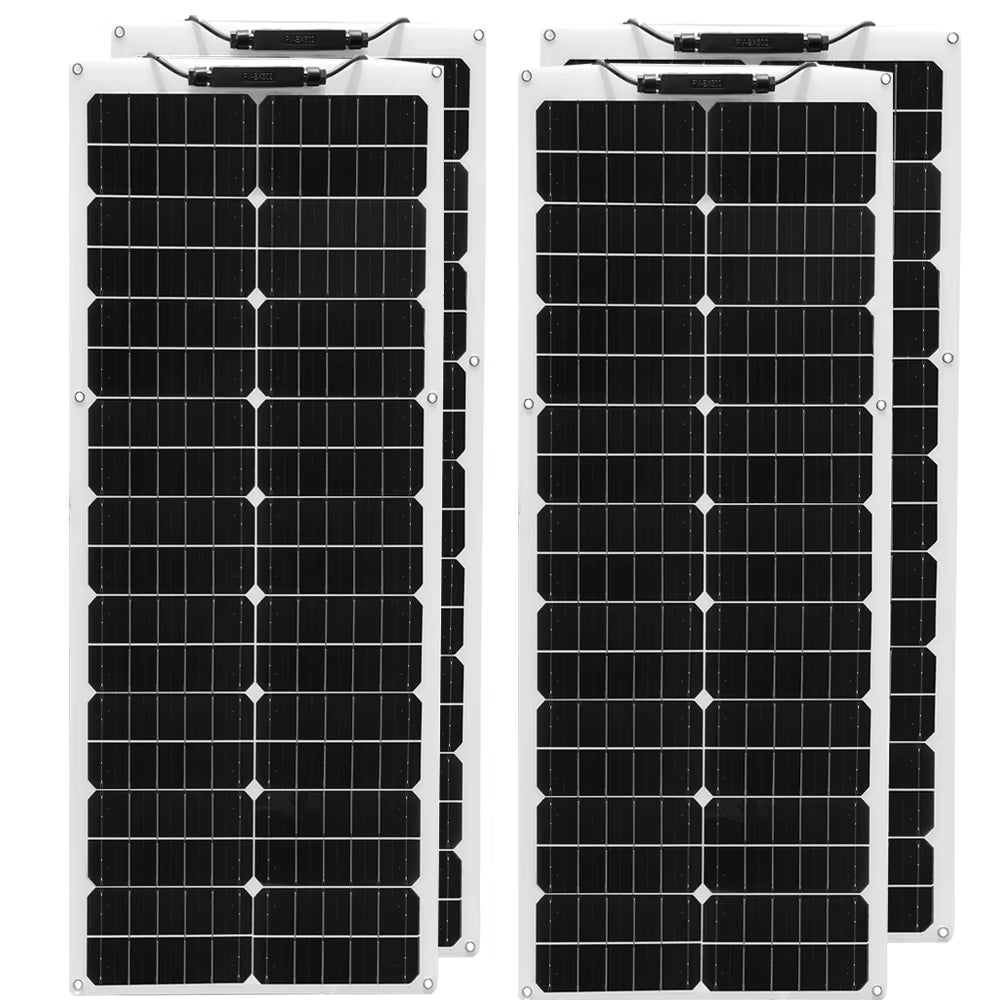

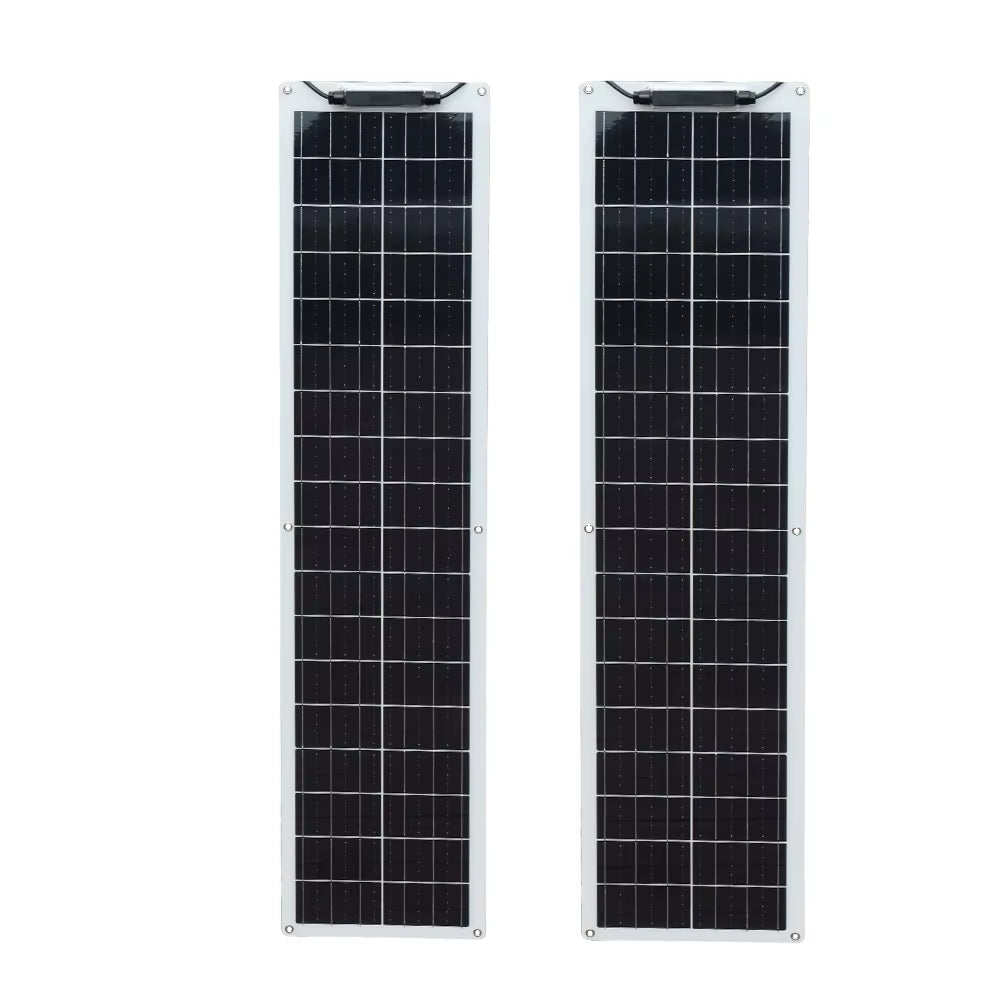

2pcs Solar Panel

1、 2*50w solar panels (1025*250MM)

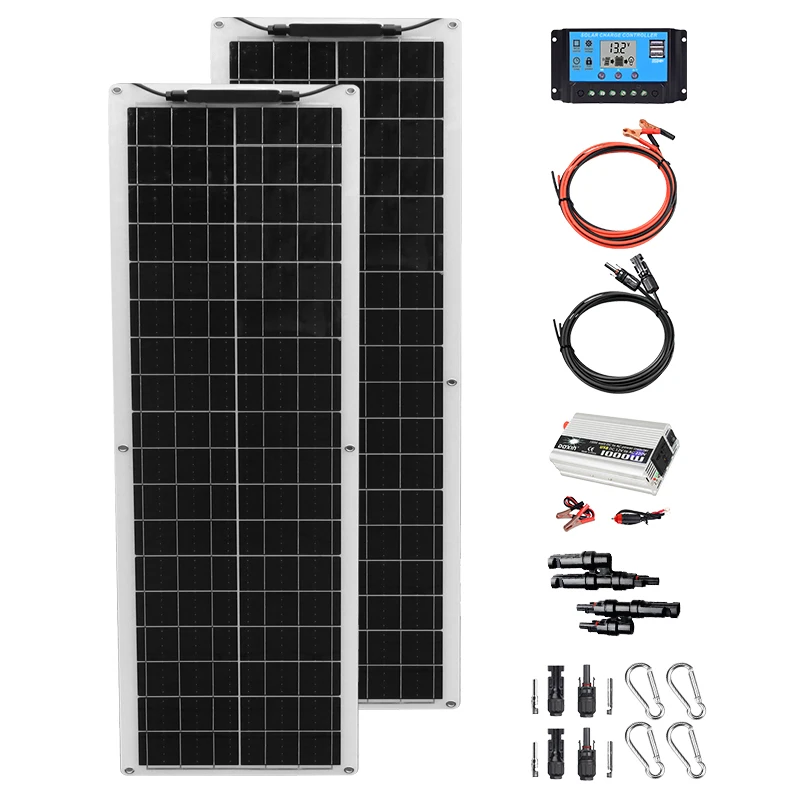

12V 220V solar system

1、 2*50w solar panels (1025*250MM)

2、 1 set 3m cable with PV connector

3、 1 set 3m cable with Alligator clip

4、 1*10A Controller

5、 1 set 2 in 1 adapter

6、1 pcs 12V To 220V Inverter

12V 220V solar system

1、 2*50w solar panels (1025*250MM)

2、 1 set 3m cable with PV connector

3、 1 set 3m cable with Alligator clip

4、 1*10A Controller

5、 1 set 2 in 1 adapter

6、1 pcs 12V To 220V Inverter

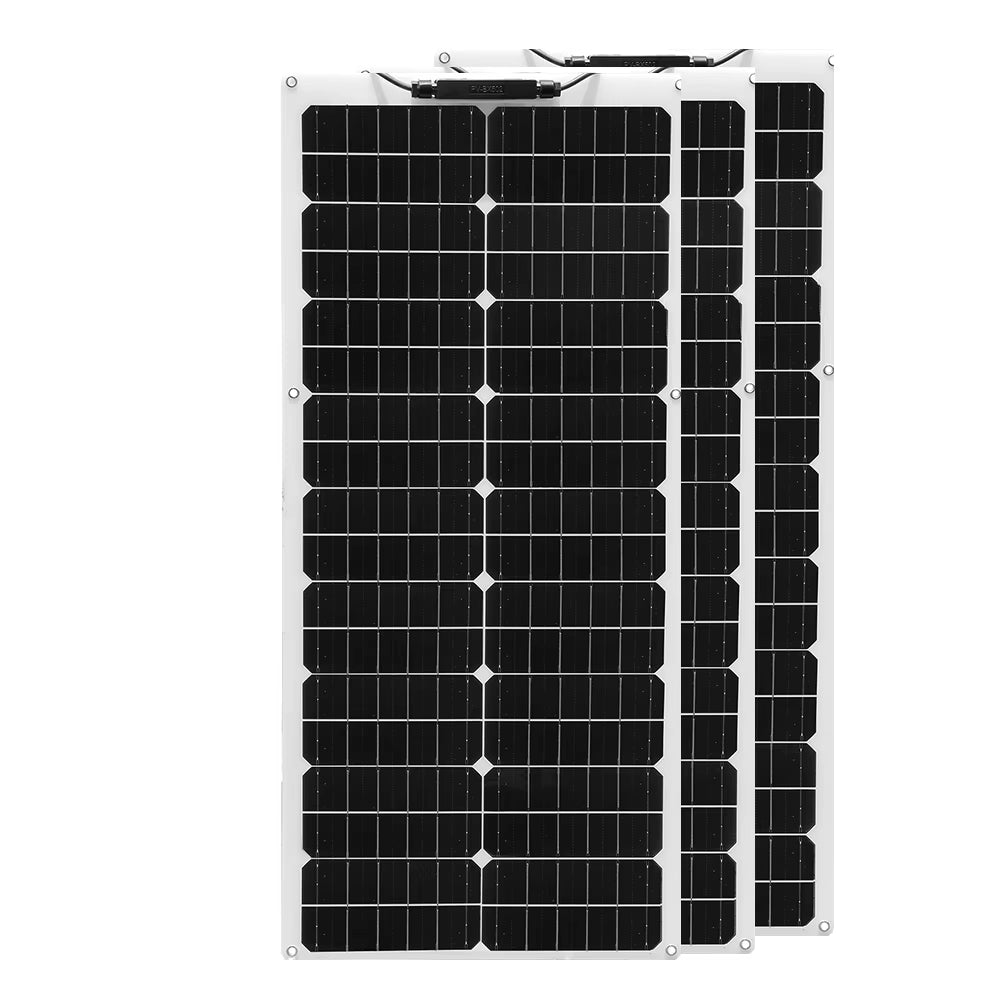

150W solar panel (3ps 50W)

1、 3*50w solar panels (820*370*3mm)

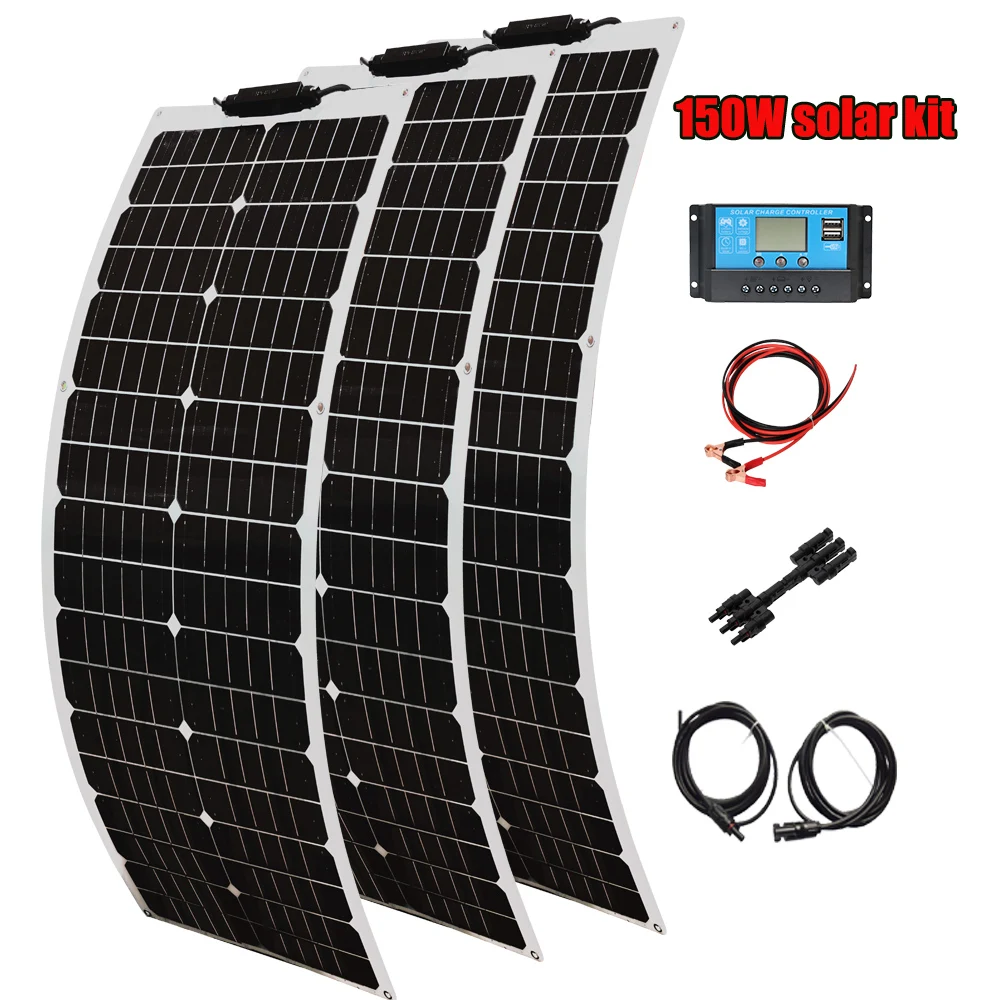

150W solar panel kit

1、 3*50w solar panels (820*370*3mm)

2、 1 set 3m cable with PV connector

3、 1 set 3m cable with Alligator clip

4、 1*20A Controller

5、 1 set 3 in 1 adapter

200W solar panel (4ps 50W)

1、 4*50w solar panels (820*370*3mm)

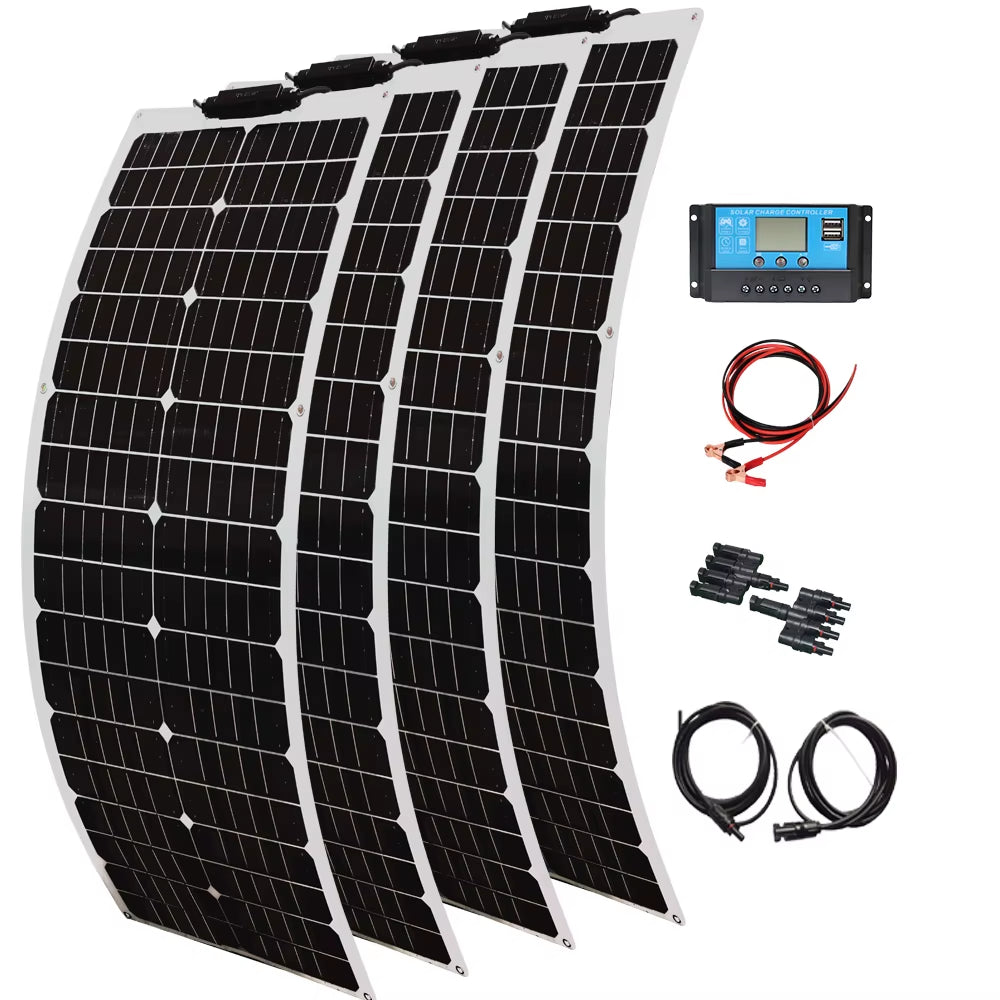

200W solar panel kit

1、 4*50w solar panels (820*370*3mm)

2、 1 set 3m cable with PV connector

3、 1 set 3m cable with Alligator clip

4、 1*20A Controller

5、 1 set 4 in 1 adapter

Controller

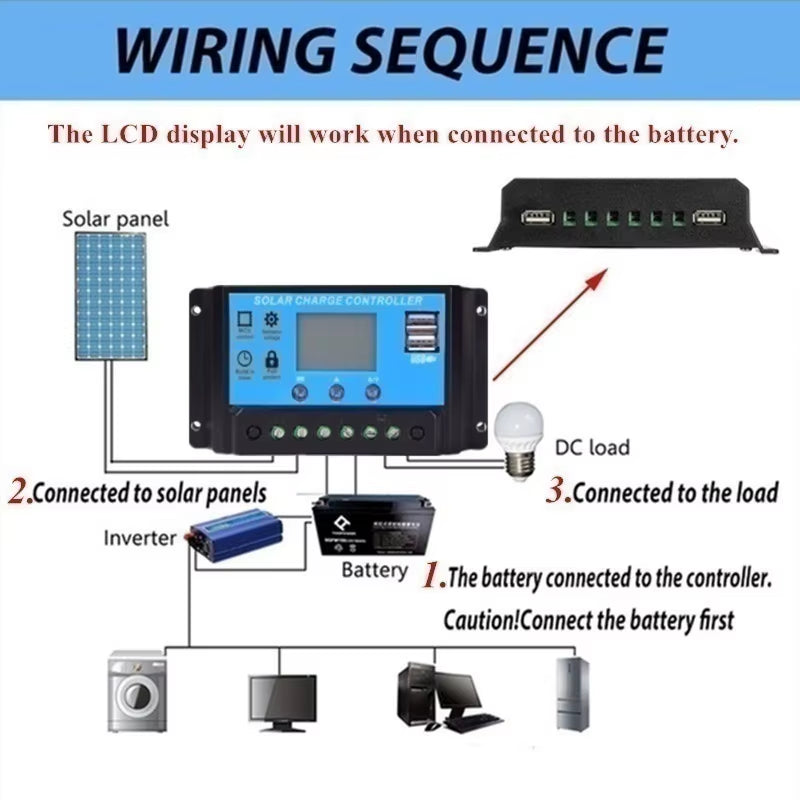

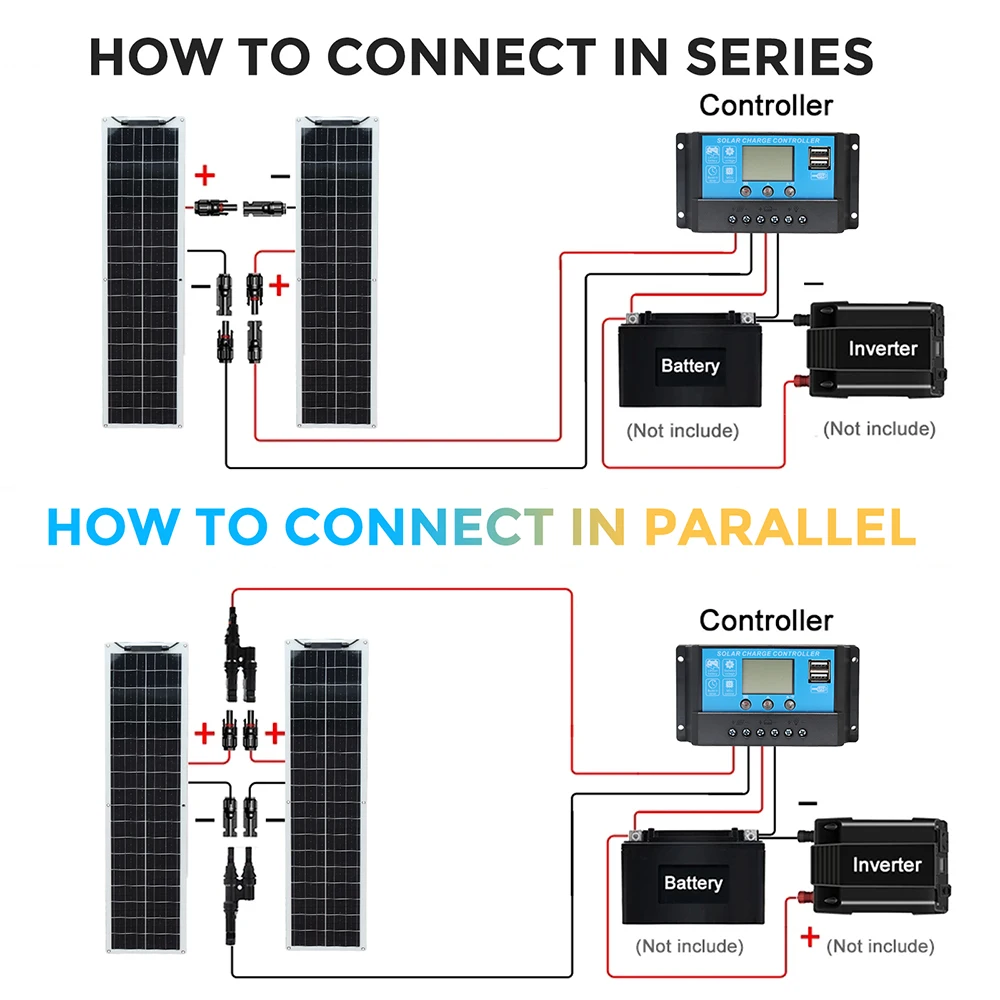

1.First,according to the diagram,connect the positive and negative electrodes of the battery to the controller,it will auto-indentify the battery voltage.
2.Then,connect the solar panles to the controller.
3.Finally, connect the positive and negative electrodes of the load to the controller. prevent reverse
4.When using lithium battery with protective panel,set the voltage level to be a fixed value.Do not
set the battery to be automatic indentification.In order to prevent the protection of the lithium battery board from the solar input after starting the controller to indentify the error voltage.
5.The open-circuit voltage of the solar panels must be smaller than the maxium allowable voltage
required by the lithium battery to prevent battery damage from excessive voltage.
6.When using the lithium battery,the short-circuit current of solar panel should be less than 0.3C
(Lithium battery capacity).

Note：

1.When using lithium battery in the environment below 0°C ,lithium battery should be work well at
low temperature.
2.Solar controllers do not have the equalizing function for lithium battery.So,the lithium battery must
build-involtage equalizing function.
3.Please strictly connect the controller in the right order,otherwise it may damage the controller.
4.When remove the cables,please in the reverse order

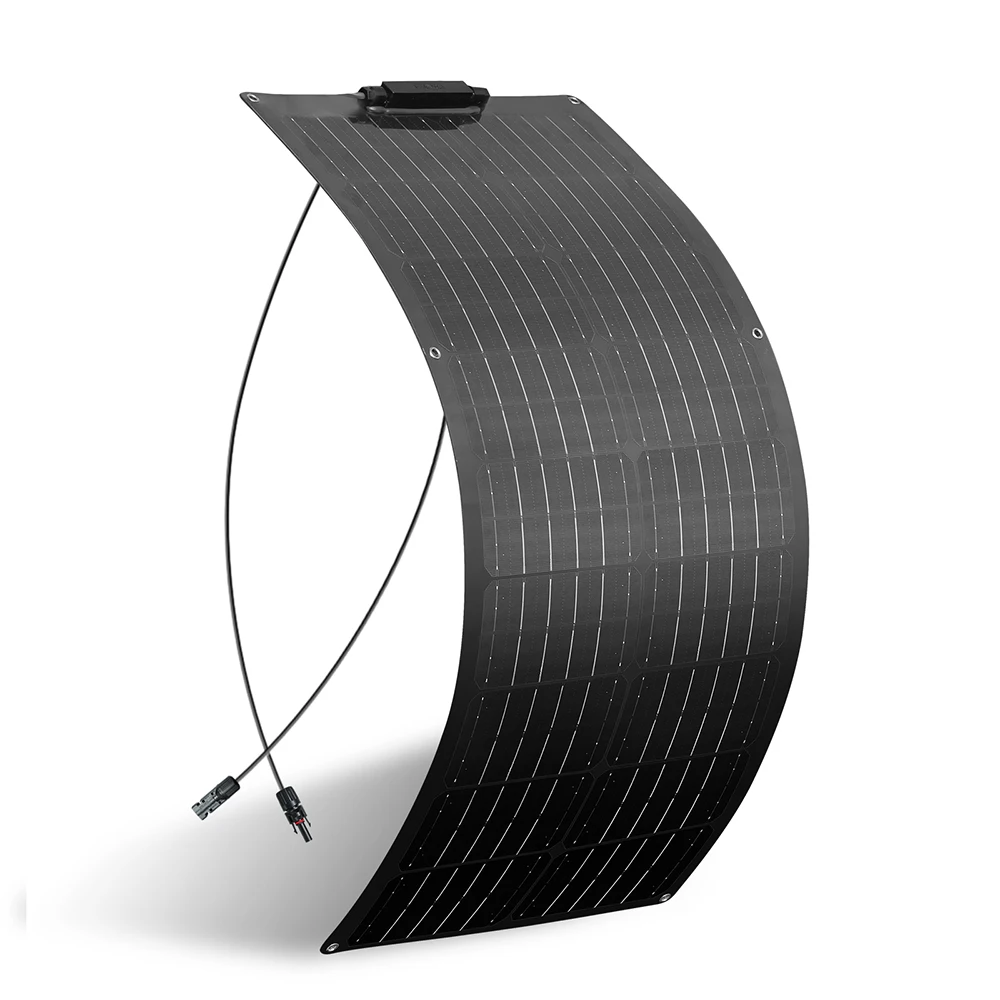

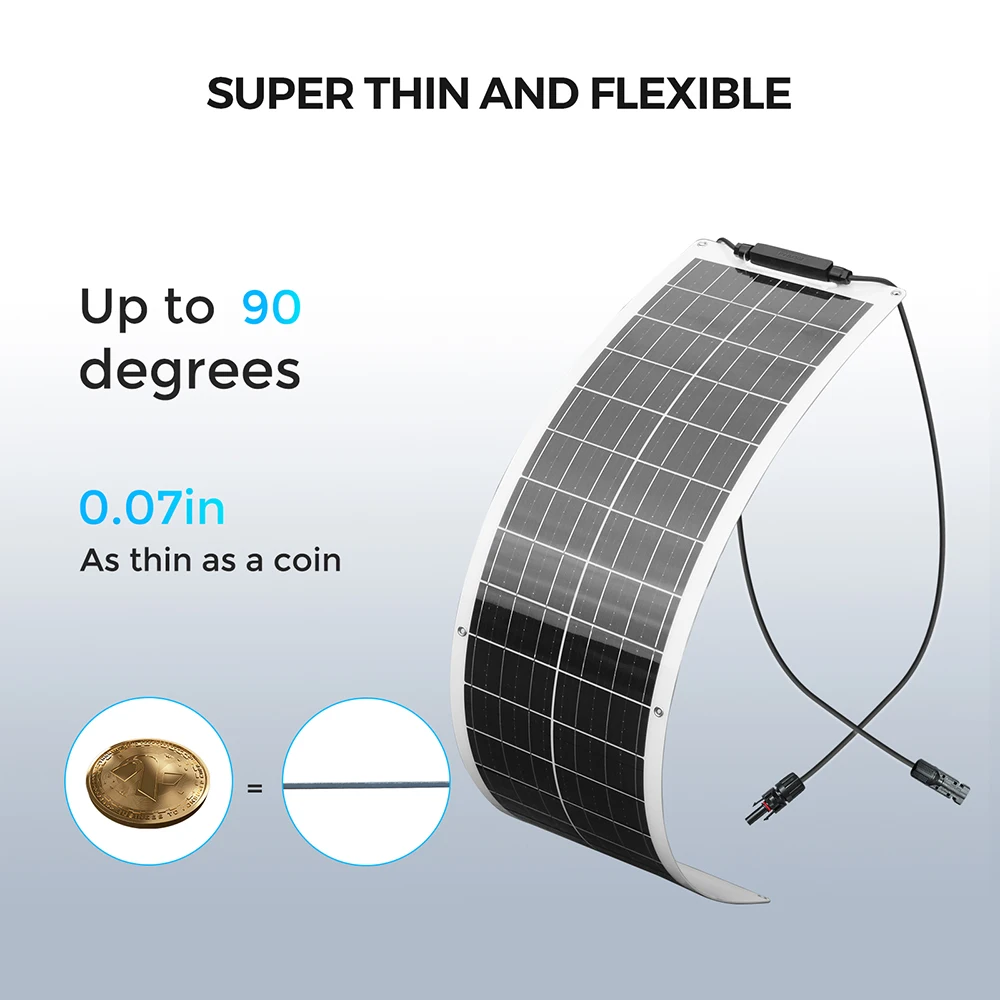

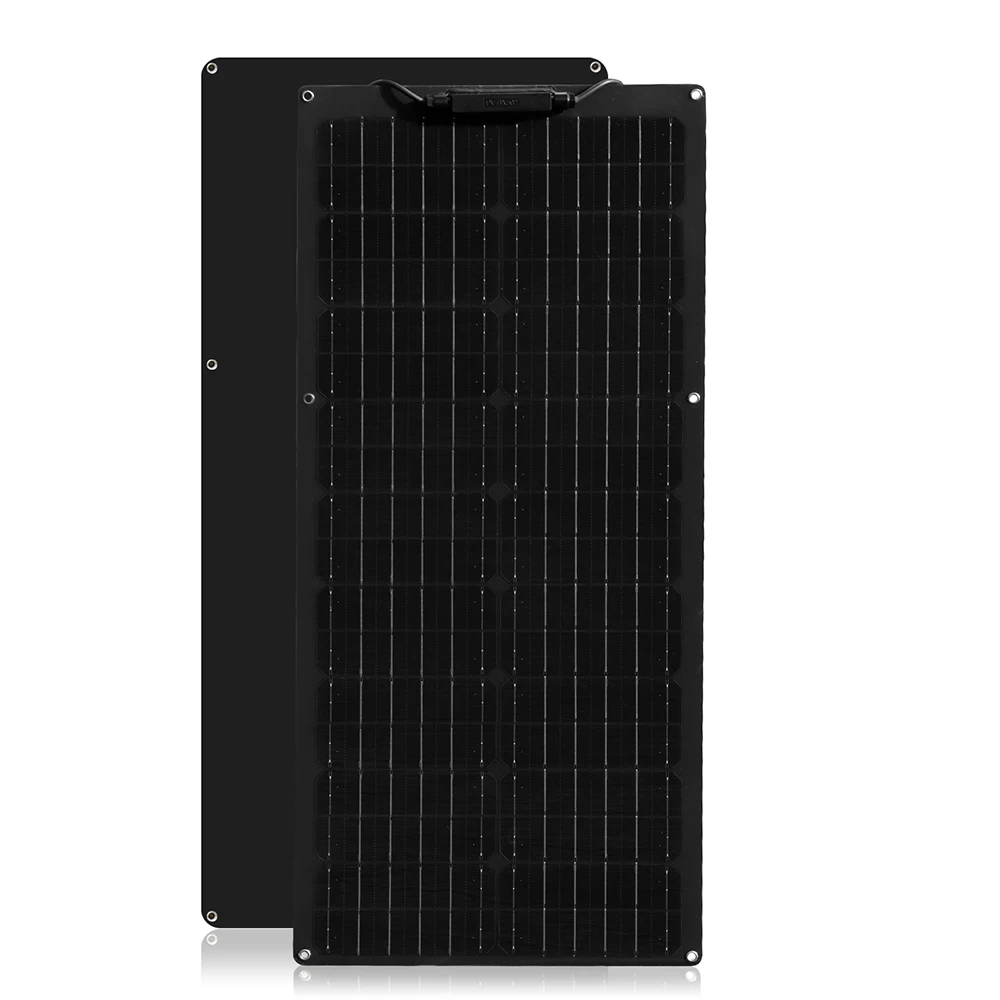

Felible solar panel
