3000W 1600W 1500W 1000W Hybrid Inverter 24V 12V Buil in 80A MPPT off Grid Solar Inverters MAX PV 400Vdc 150Vdc

$178.58 USD

~~$0.00 USD~~ $178.58 USD

Sale Sold out

Color 1000W 12V No Wifi (1052_201299344) 1600W 12V No Wifi (366_201299344) 1500W 24V No Wifi (496_201299344) 3000W 24V No Wifi (193_201299344)

Output Voltage 220-240V (1052_201299344) 220-240V (366_201299344) 220-240V (496_201299344) 220-240V (193_201299344)

Inverter use notice:
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

1000W 12V & 1500W 24V & 1600W 12V & 3000W 24V inverters are recommended to be used without WIFI module.
Please find an electrician to install the inverter. Installing it yourself can cause danger or damage to the equipment.

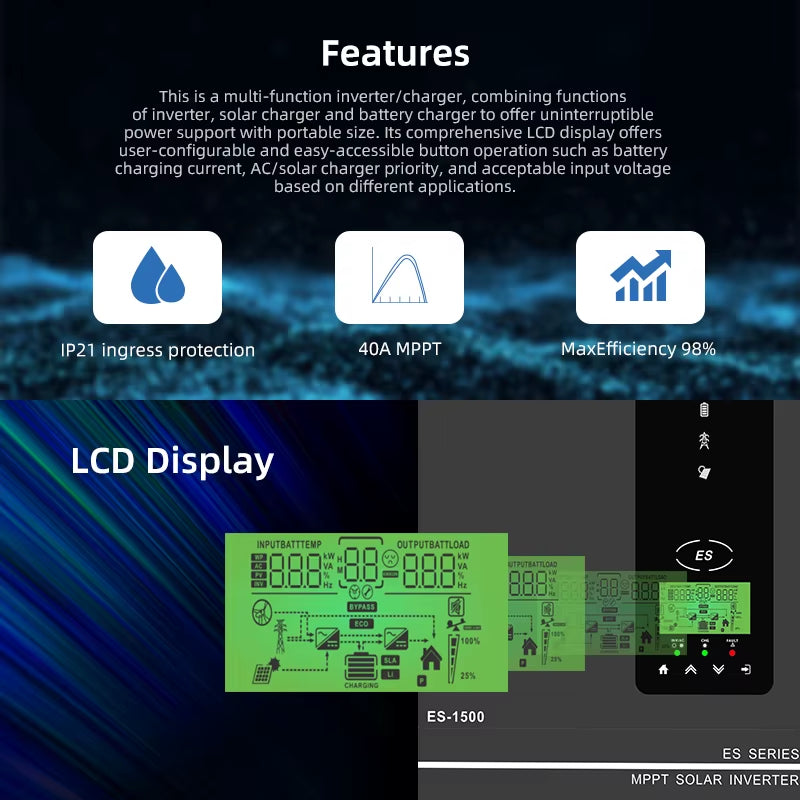

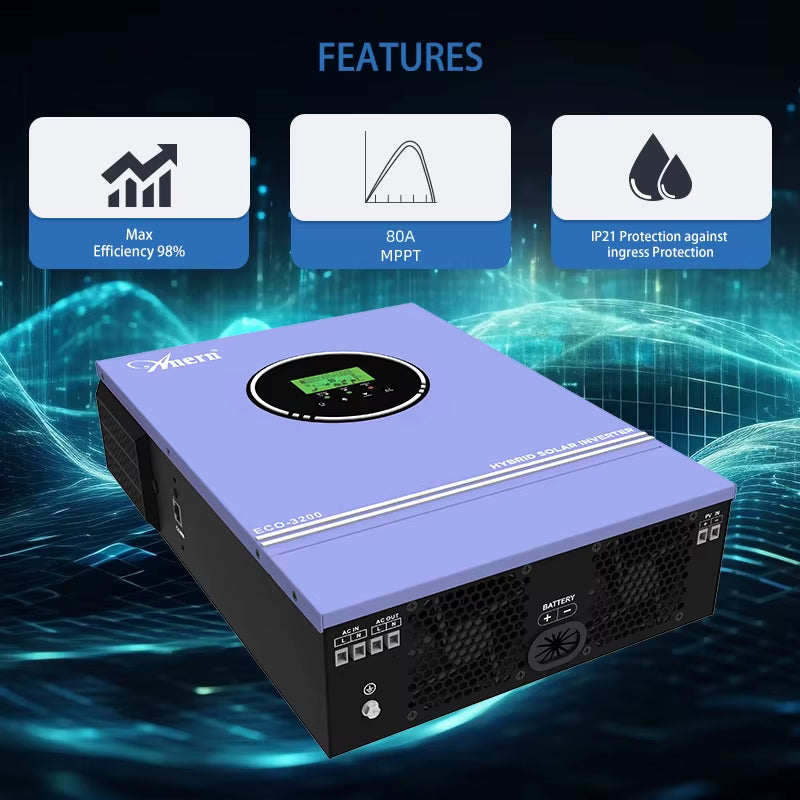

Features of Module

Pure sine wave solar inverter

Output power factor 1.0

Bulit-in 80A MPPT solar controller

Max 2000W(for 2000KVA) & 3000W(for 3200KVA) solar charge

High PV input voltage range(30-400VDC)

Built-in anti-dusk kit for harsh environment

Smart battery charge design to optimize battery life

Compatible with lithium battery

WIFI available for IOS and Android

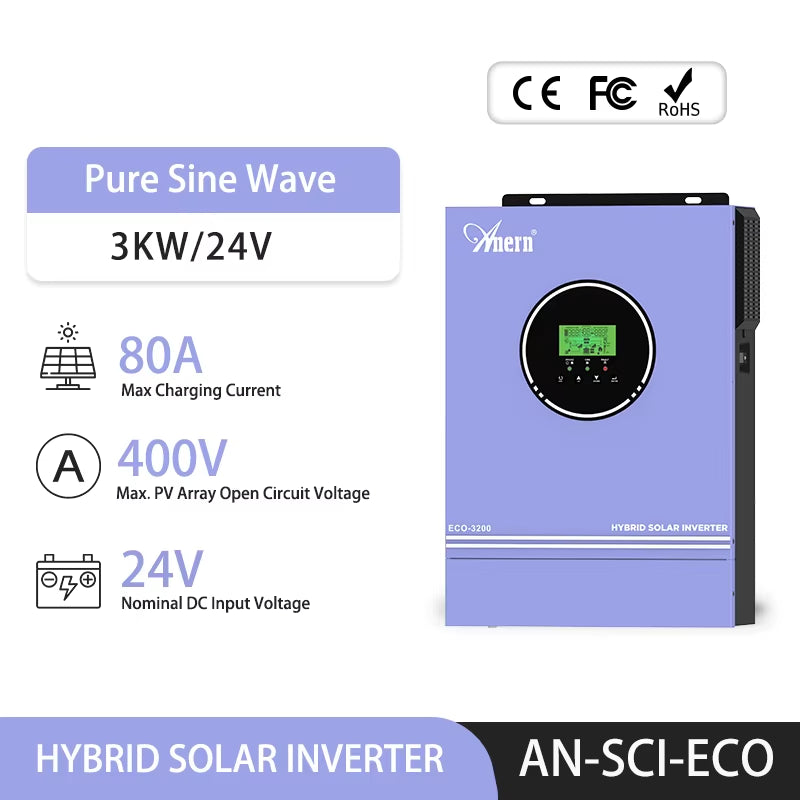

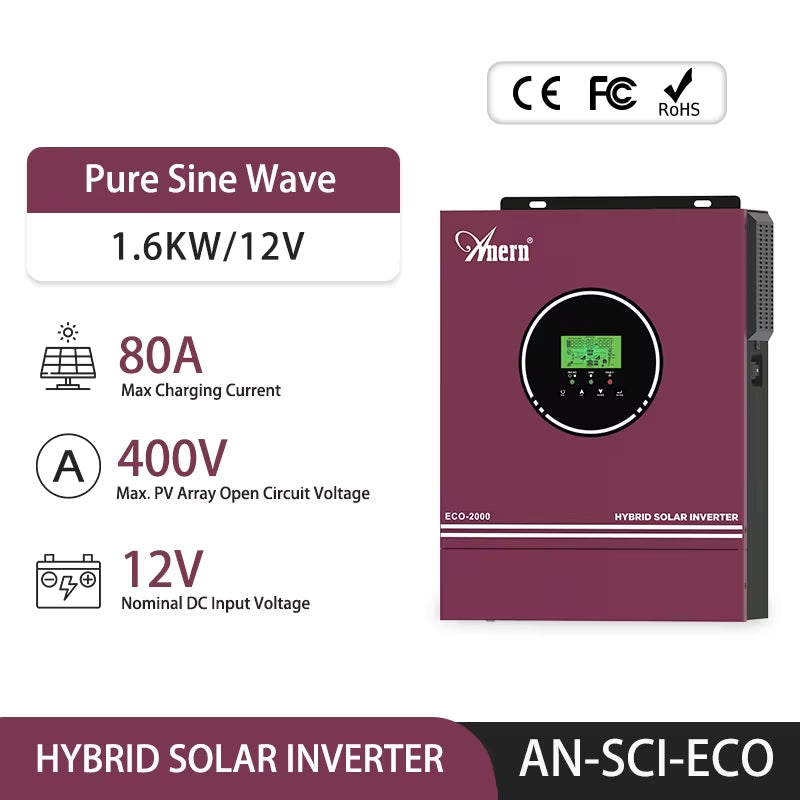

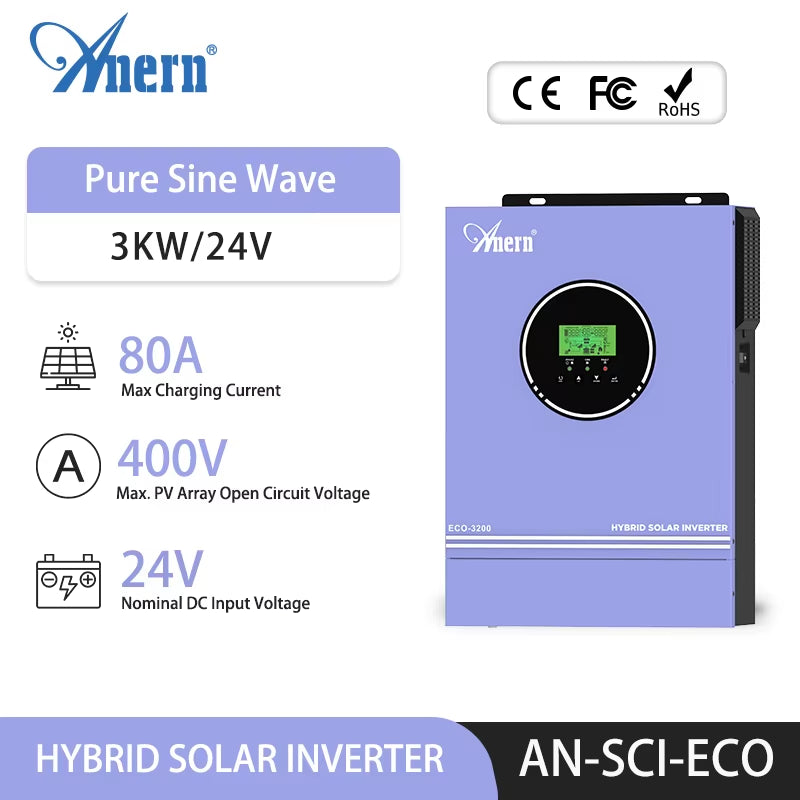

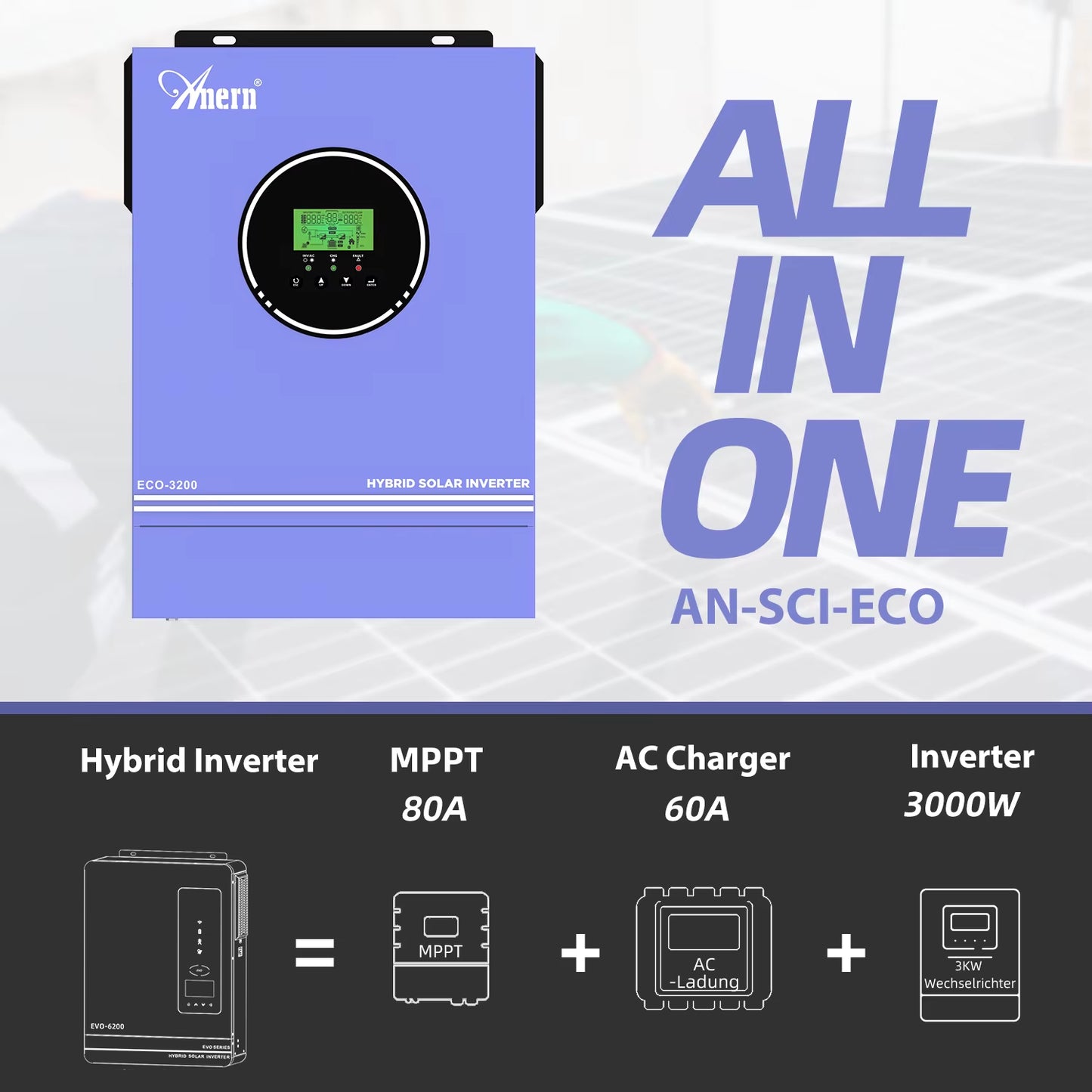

Model	SCI-ECO-2000	SCI-ECO-3200
RATED POWER	2000VA/1600W	3200VA/3000W
AC INPUT
AC Input Voltage	230VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	4000VA	6400VA
Efficiency (Peak) PV to Inverter	98%
Efficiency (Peak) Battery to Inverter	94%
Transfer Time	10 ms (For Personal Computers);20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Overcharge Protection	16VDC	33VDC
Maximum AC Charge Current	60A
SOLAR CHARGER
Maximum PV Array Power	2000W	3000W
MPPT Range @ Operating Voltage	30-400VDC
Maximum PV Array Open Circuit Voltage	400VDC
Maximum Charging Current	80A
PHYSICAL
Dimension, D x W x H (mm)	360270100mm	390270100mm
Net Weight (kg)	4.4	5.4
INTERFACE
Communication interface	WIFI
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	–10°C - 50°C
Storage Temperature	–15°C - 60°C

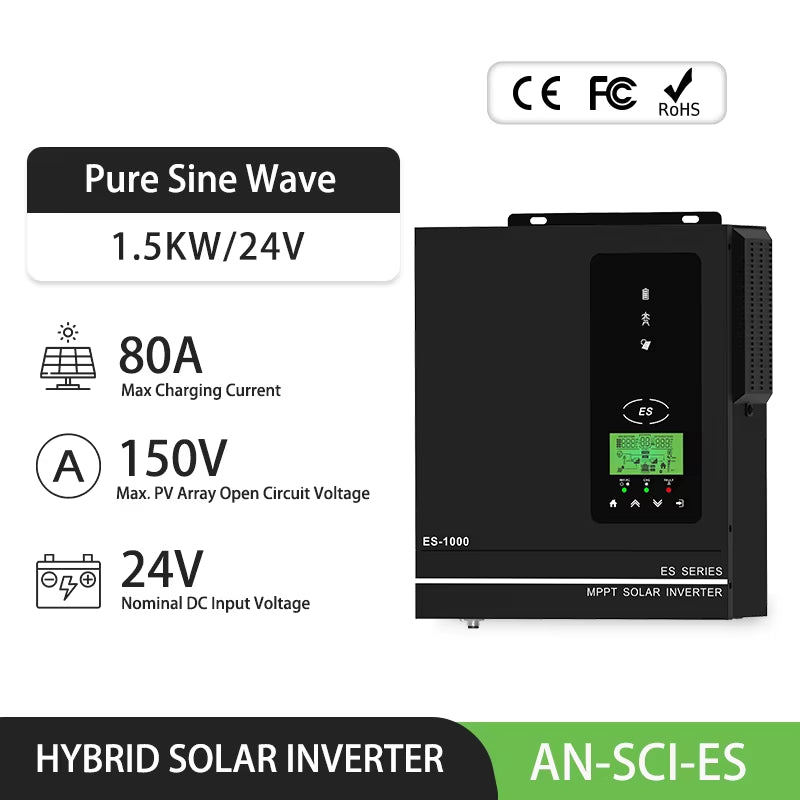

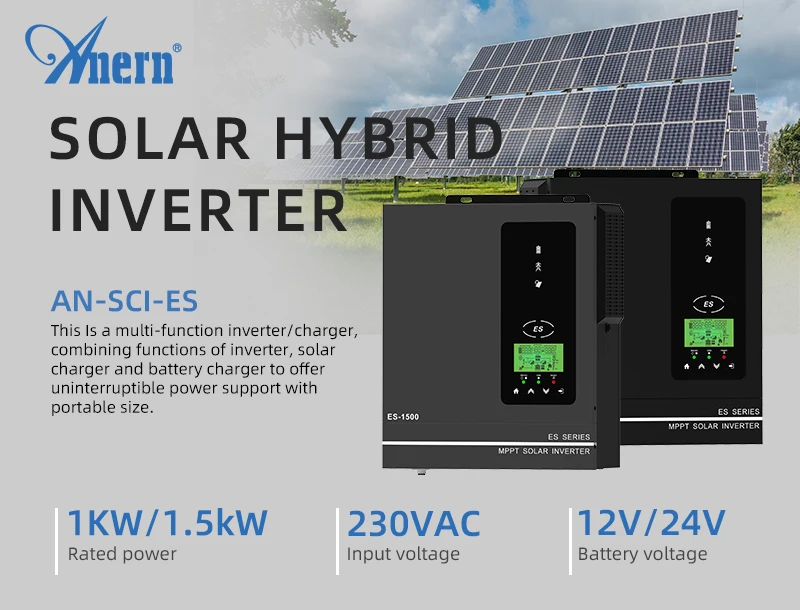

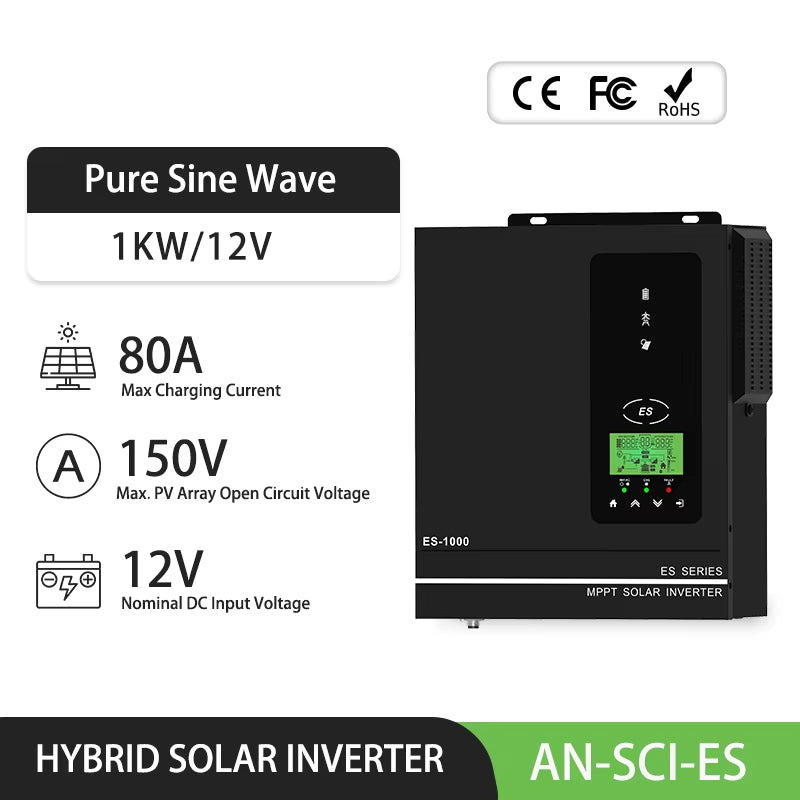

Model	AN-SCI-ES-1000	AN-SCI-ES-1500
RATED POWER	1000W/1000VA	1500W/1500VA
AC INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers)
90-280VAC(For Home Appliances)
Frequency Range	50 Hz/60Hz(Auto sensing)
AC OUTPUT
AC Voltage Regulation	230VAC±5%
Surge Power	2000VA	3000VA
Efficiency(Peak)PV to INV	98%
Efficiency(Peak)Battery to INV	94%
Transfer Time	10 ms (For Personal Computers);20 ms (For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC
Floating Charge Voltage	13.5VDC	27VDC
Overcharge Protection	16VDC	32VDC
Maximum AC Charge Current	40A
SOLAR CHARGER
Maximum PV Array Power	600W	1200W
MPPT Range @ Operating Voltage	20-150VDC	30-150VDC
Maximum PV Array Open Circuit Voltage	150VDC
Maximum Solar Charging Current	40A
Maximum (AC+Solar) Charging Current	80A
PHYSICAL

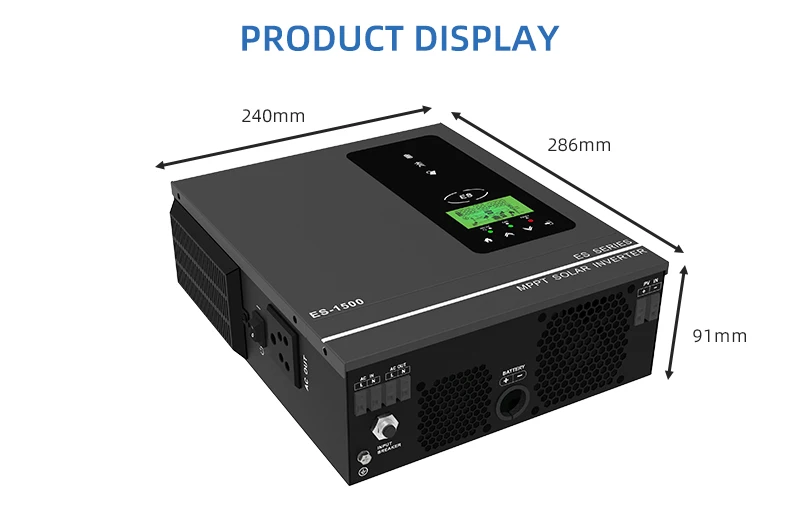

Dimension,DWH(mm)	28624091
Cartoon Dimension,DWH(mm)	335295145
Net Weight(kgs)	3	3.5
Gross Weight(kgs)	3.5	4
